UT90 Series Upenders

Presto UT90 Series Upenders with 90˚ tilt are used to re-orient loads from horizontal to vertical positions. They are ideal for changing rolls or coils from “eye-to-the-sky” to “eye-to-horizion” quickly and easily without damage.

They are equipped with 48" x 84" platforms and can be equipped with platens up to 48" x 48". Optional forks can be specified in place of a platen.

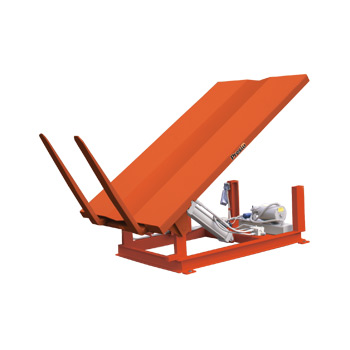

UT90 Series Upender with Optional Forks

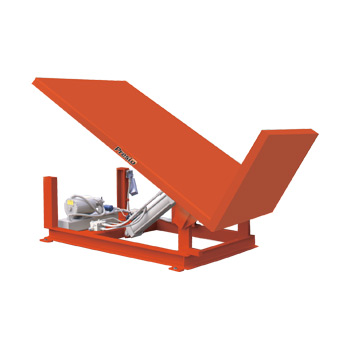

UT90 Series 90˚ Upender with Standard Platen

Model
Number 		Load
Capacity 		Bed/Low
Height* 		Platen
Height* 		Degree Maximum
Platform 		Maximum
Platen 		Standard
Voltage
Model
Number :  UT90 Series
Model
Number :  UT90-20
Load
Capacity : 2000 lbs
Bed/Low
Height* : 25"
Platen
Height* : 5"
Degree 90°
Maximum
Platform : 48 x 84"
Maximum
Platen : 48 x 48"
Standard
Voltage: 460/3/60
Model
Number :  UT90-40
Load
Capacity : 4000 lbs
Bed/Low
Height* : 25"
Platen
Height* : 5"
Degree 90°
Maximum
Platform : 48 x 84"
Maximum
Platen : 48 x 48"
Standard
Voltage: 460/3/60
Model
Number :  UT90-60
Load
Capacity : 6000 lbs
Bed/Low
Height* : 25"
Platen
Height* : 5"
Degree 90°
Maximum
Platform : 48 x 84"
Maximum
Platen : 48 x 48"
Standard
Voltage: 460/3/60

Share this product

  • 2,000,  4,000 or 6,000 lb. capacity
  • Tilt angle 90˚
  • 48" x 84" platforms with available platens up to 48" x 48"
  • Optional forks available in place of platen
  • Platform modification including V-Cradles are available.
Download - General Catalog
