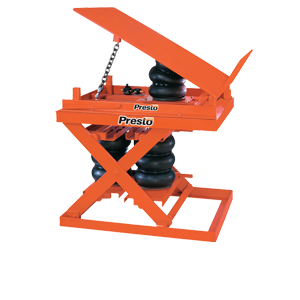

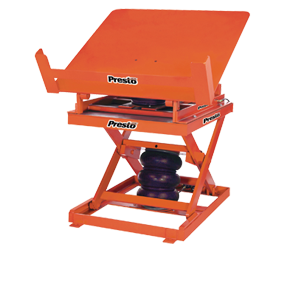

AXT Series Pneumatic Lift & Tilt Tables
- Available platforms from 36" x 48" up to 48" x 60"
- Standard pedestal control/Optional foot control
- Air requirements are 80 psi at 15 cfm
- Pressure relief valve standard
- Lifetime warranty on actuator
- Custom designs available
Have a question or comment?
 Presto Pneumatic Lift and Tilt Tables - AXT Series and Heavy-Duty Pneumatic Lift and Tilt Tables - AXST Series, Lift loads to the most comfortable working height, and then tilt them for easy access. Tilt tops can be equipped with special fixtures, lips and gussets for positioning a wide range of baskets and containers. Lift heights of 36" to 43" are available. Loads can be tilted to any angle from 0˚ to 30˚. Lift and Tilt functions are controlled independently and are achieved by the use of heavy-duty air bags. Choose from 1,000, 2,000, 4,000, or 6,000 lb. capacities.
|
-
Model
NumberLoad
CapacityRaised
HeightLow
HeightDegree
of TiltVertical
TravelBase Size
W x LPlatform
Size W x LShipping
WeightAXT10 Series AXT10-3648 1000 lbs 36" 15" 30° 21" 36 x 48" 36 x 48" 1190 lbs AXT10-4848 1000 lbs 36" 15" 30° 21" 36 x 48" 48 x 48" 1300 lbs AXT10-4856 1000 lbs 36" 15" 30° 21" 36 x 48" 48 x 56" 1390 lbs AXT10-4860 1000 lbs 36" 15" 30° 21" 36 x 48" 48 x 60" 1440 lbs AXT20 Series AXT20-3648 2000 lbs 39" 15" 30° 24" 36 x 48" 36 x 48" 1365 lbs AXT20-4848 2000 lbs 39" 15" 30° 24" 36 x 48" 48 x 48" 1395 lbs AXT20-4856 2000 lbs 39" 15" 30° 24" 36 x 48" 48 x 56" 1450 lbs AXT20-4860 2000 lbs 39" 15" 30° 24" 36 x 48" 48 x 60" 1540 lbs AXT40 Series AXT40-4848 4000 lbs 39" 15" 30° 24" 48 x 48" 48 x 48" 1540 lbs AXT40-4856 4000 lbs 39" 15" 30° 24" 48 x 48" 48 x 56" 1595 lbs AXT40-4860 4000 lbs 39" 15" 30° 24" 48 x 48" 48 x 60" 1635 lbs AXST20 Series AXST20-3648 2000 lbs 43" 19" 30° 24" 36 x 48" 36 x 48" 1200 lbs AXST20-4848 2000 lbs 43" 19" 30° 24" 36 x 48" 48 x 48" 1320 lbs AXST20-4856 2000 lbs 43" 19" 30° 24" 36 x 48" 48 x 56" 1460 lbs AXST20-4860 2000 lbs 43" 19" 30° 24" 36 x 48" 48 x 60" 1540 lbs AXST40 Series AXST40-3648 4000 lbs 43" 19" 30° 24" 36 x 48" 36 x 48" 1450 lbs AXST40-4848 4000 lbs 43" 19" 30° 24" 36 x 48" 48 x 48" 1570 lbs AXST40-4856 4000 lbs 43" 19" 30° 24" 36 x 48" 48 x 56" 1690 lbs AXST40-4860 4000 lbs 43" 19" 30° 24" 48 x 60" 1770 lbs AXST60 Series AXST60-4848 6000 lbs 43" 19" 30° 24" 48 x 48" 48 x 48" 1660 lbs AXST60-4856 6000 lbs 43" 19" 30° 24" 48 x 48" 48 x 56" 1780 lbs AXST60-4860 6000 lbs 43" 19" 30° 24" 48 x 48" 48 x 60" 1860 lbs
