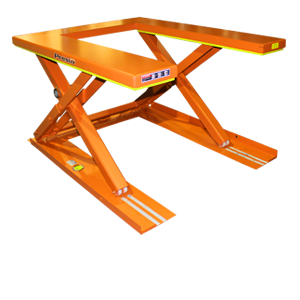

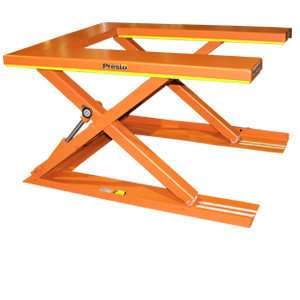

U-Lift Roll-In Leveler
- 2,200 Lb. Capacity
- Raised Height: 34 3/4"
- Lowered Height: 3 1/4"
- Standard Footswitch Controls
- Full Perimeter Toe Guard
- Operates on standard 115V Power
Have a question or comment?

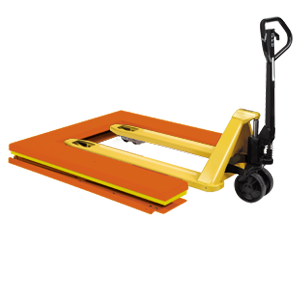

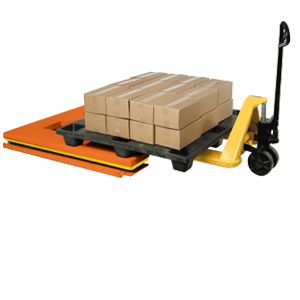

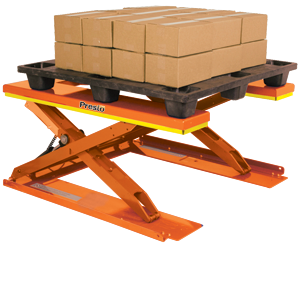

 The U-Lift Roll-In Lift Table has been designed for feeding and offloading with an ordinary hand pallet truck. With a pallet truck in the fully raised position, the load can be placed on the lift. The pallet rides over the outside platform beams while the pallet truck fits in between them. This unique design gives workers 4 sided access to the loads with minimal to no reach-over. An electromechanical toeguard around the perimeter of the platform protects workers.
|
-
Model
NumberLoad
CapacityRaised
HeightLowered
HeightPlatform
Size (WxD)Lift
Beam
I.D.Lifting
SpeedStandard
MotorVoltage
Phase/HZShipping
WeightUL34-22 2,200 lbs 34 ¾" 3 ¼ " 51" x 60 ½" 29" 22 sec 1 HP 115/1/60 700 lbs
