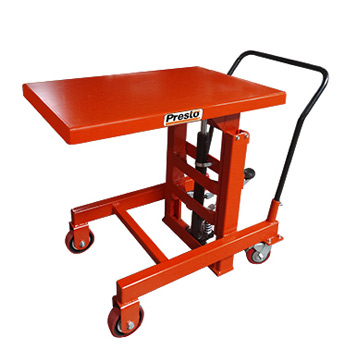

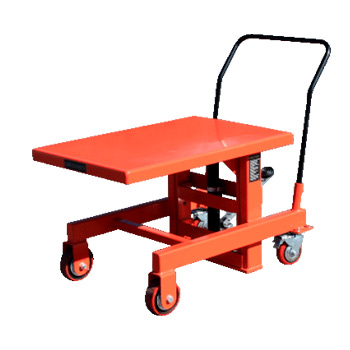

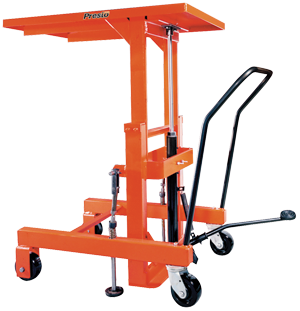

Hydraulic Cantilever Tables
- 2000 lb capacity
- Dual floor locks
- Raised height: 36", 48" or 60"
- Lowered heights down to 24"
- 2 fixed & 2 swivel phenolic casters
- Foot operated hydraulic pump
- Tip toe release for lowering
Have a question or comment?

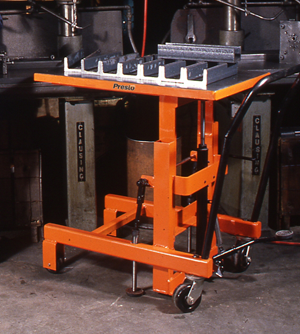

 An easy to use foot pump raises this hydraulic lift a full 5 feet high. The ergonomically designed drive handle is at a comfortable height and makes this unit extremely manueverable. The open area between the base legs and table top allows access to hard to reach machine beds and work areas. The two-stage telescoping lift mechanism has hardened steel rollers to provide smooth platform raising and lowering. |
-
Model
NumberLoad
CapacityRaised
HeightLow
HeightPlatform
SizeShipping
WeightPL Series PL36 2000 lbs 36" 24" 24 x 36" 315 lbs PL48 2000 lbs 48" 30" 24 x 36" 330 lbs PL60 2000 lbs 60" 36" 24 x 36" 350 lbs
