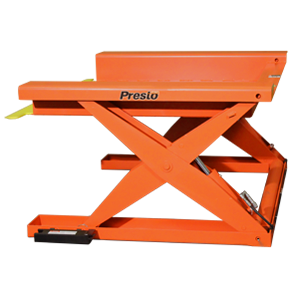

XZ Series Lifts - Floor Height Lift Tables

Available in 2,000, 4,000 and 6,000 lb. capacities
35" vertical travel
Loads can be accessed from 4 sides with minimum reach over
External 1 HP 115/1/60 power unit
Optional power units available
Foot or hand-held control
6" flexible yellow safety toe guard
Lifting eyes for safe positioning
Custom designs available

Download General Catalog

Have a question or comment?

First Name
Last Name
Company
Email
Phone
Street
City
State/Province
Zip
Country
Request more information or a quote:

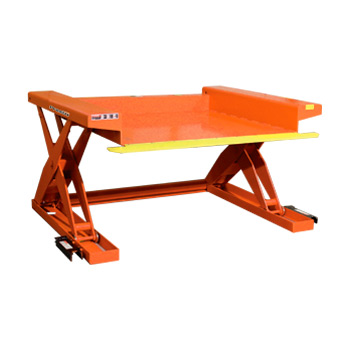

XZ Low-Profile Scissor Lift

Pan-Style Platform Lowers to 3/8"

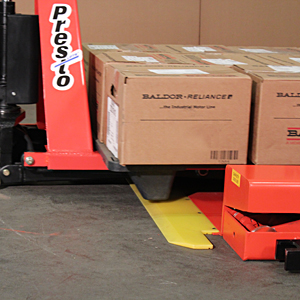

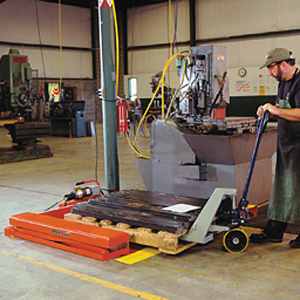

Load and unload with a hand pallet jack

Ideal for a wide range of uses

‹ ›

XZ Series Lifts - Floor Height Lift Tables

These industrial grade, hydraulic scissor lift tables feature a unique pan-style platform that sits only 3/8" above the floor when fully lowered. This low-profile design allows them to be loaded and unloaded by a hand pallet truck. Use them in facilities where fork lifts or stackers aren't available. An additional advantage of hand pallet truck accessibility is the opportunity for workers to function at their own pace without having to wait for a fork lift and certified operator to load the lifts for them.

With capacities up to 6,000 lbs. and multiple platform (pan) sizes, virtually any load can be accommodated.

Model Number	Load Capacity	Raised Height	Low Height	Platform Size	Dimensions W x L		Shipping Weight
XZ44 Series
XZ44-20	2000 lbs	35 ⅜"	3/8"	44 x 48"	61 ¼ x 59"	40 sec	1300 lbs
XZ44-40	4000 lbs	35 ⅜"	3/8"	44 x 48"	61 ¼ x 59"	44 sec	1325 lbs
XZ44-60	6000 lbs	34 ½"	1/2"	44 x 48"	65 ¼ x 59"	54 sec	1750 lbs
XZ50 Series
XZ50-20	2000 lbs	35 ⅜"	3/8"	50 x 48"	67 ¼ x 59"	40 sec	1400 lbs
XZ50-40	4000 lbs	35 ⅜"	3/8"	50 x 48"	67 ¼ x 59"	44 sec	1425 lbs
XZ50-60	6000 lbs	34 ½"	1/2"	50 x 48"	67 ¼ x 59"	54 sec	1850 lbs

OPTIONS & ACCESSORIES

BELLOWS ACCORDION SKIRTING
PORTABILITY CHAINS
AIR POWER UNIT & CONTROLS
PHOTOEYE TOE PROTECTION
ONE TOUCH AUTO-LEVELING
CONTROL PANEL

BELLOWS ACCORDION SKIRTING

Encloses sides and ends of both scissor legs and the full width of the back side of the platform. Black and yellow 3" vinyl pleats.
PORTABILITY CHAINS
For moving empty lift with a fork truck or pallet jack.
AIR POWER UNIT & CONTROLS
In lieu of standard 115/1/60 electric power unit.
PHOTOEYE TOE PROTECTION
In place of standard flexible lip. Lift will not lower when light beam is broken.
ONE TOUCH AUTO-LEVELING
Lift platform will raise or lower a preset increment at the touch of a button. This is especially helpful in palletizing applications where box dimensions remain constant from load to load
CONTROL PANEL (Linestarter/Transformer)
For use with 3 phase primary voltage (ships loose).

BELLOWS ACCORDION SKIRTING

Encloses sides and ends of both scissor legs and the full width of the back side of the platform. Black and yellow 3" vinyl pleats.

PORTABILITY CHAINS
For moving empty lift with a fork truck or pallet jack.

AIR POWER UNIT & CONTROLS
In lieu of standard 115/1/60 electric power unit.

PHOTOEYE TOE PROTECTION
In place of standard flexible lip. Lift will not lower when light beam is broken.

ONE TOUCH AUTO-LEVELING
Lift platform will raise or lower a preset increment at the touch of a button. This is especially helpful in palletizing applications where box dimensions remain constant from load to load

CONTROL PANEL (Linestarter/Transformer)

For use with 3 phase primary voltage (ships loose).
