Hydraulic/Electromechanical Post Tables

• 1000 or 2000 lbs capacity
• 12 volt DC screw drive linear actuator
• Foot operated floor lock
• Push-button control on BP Series
• Integrated push/pull handle
• 2 fixed and 2 swivel polyurethane wheels

Download General Catalog

Have a question or comment?

Please let us know your name.

Please let us know your email address.

Invalid Input

Invalid Input

Invalid Input

Question / Comment (*)Please let us know your message.

Enter Letters and Numbers(*)
RefreshInvalid Input

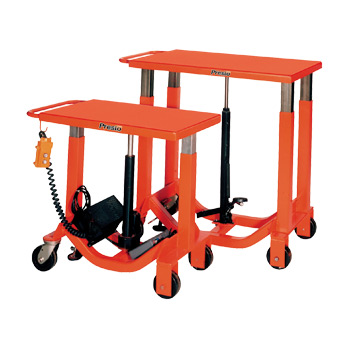

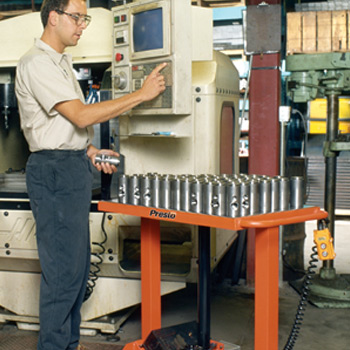

These electric lift tables are excellent transporters and work positioners. Smooth lifting and lowering is achieved by a central lifting cylinder while guide posts provide stability for the platform even when fully extended. Lifting and lowering is via a 12 VDC linear actuator with pushbutton control.

• Model Number	Load Capacity	Raised Height	Low Height	Platform Size	Shipping Weight
  BP18 Series - Battery-Operated Tables
  BP18-10	1000 lbs	52"	34"	24 x 36"	370 lbs
  BP18-20	2000 lbs	52"	34"	24 x 36"	430 lbs
  BP12 Series - Battery-Operated Tables
  BP12-10	1000 lbs	37"	25"	24 x 36"	270 lbs
  BP12-20	2000 lbs	37"	25"	24 x 36"	310 lbs
