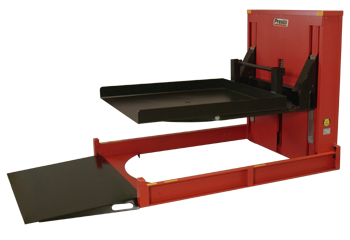

P4 Floor Height Load Leveler with Built-In Turntable

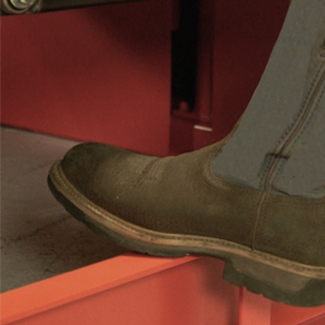

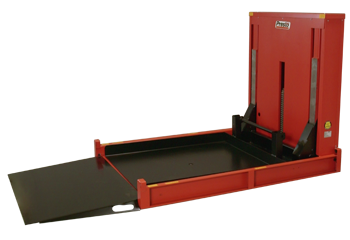

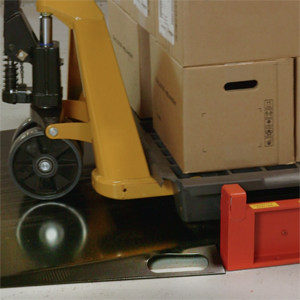

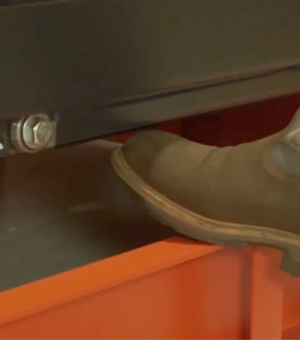

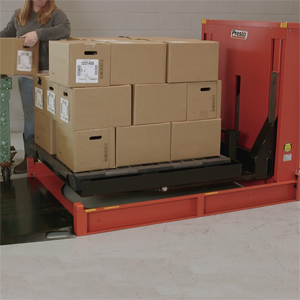

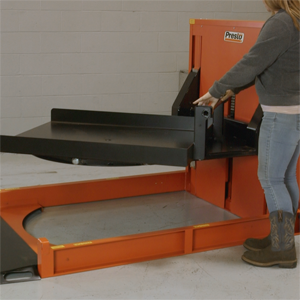

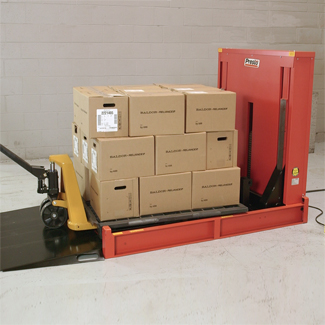

Keep loads at a comfortable height Roll-On Leveler with Turntable Lowers to floor level Stable platform has built-in turntable Load and unload with a hand pallet truck Pallet Jack Rolls Easily up Ramp Platform Spins Easily - No Need to Walk Around the Pallet Toe Sensor Stops Lowering When Beam is Broken ‹ › The P4 Floor Height Load Leveler with built-in Turntable can be loaded or unloaded with an ordinary hand pallet truck. Load height is easily adjusted by the operator to keep the top layer of boxes at a comfortable, easy-to-access height. The built-in turntable accepts a wide range of pallet sizes and rotates easily so workers can load/unload from a single position without having to reach across or walk around the pallet. The 31” ramp provides a gentle incline that facilitates loading with a hand pallet truck.

• Model Number	Load Capacity	Raised Height	Lowered Height	Platform Size	Lifting Speed	Std. Motor	Std. Voltage Phase/Hz	Shipping Weight
  P4 Series
  P4-LPT	2500 lbs	30"	2"	44 x 48"	30 sec	1 HP	115/1/60	1400 lbs

  Options & Accessories

  • ONE TOUCH AUTO-LEVELING

  • ONE TOUCH AUTO-LEVELING

    Unit can be set to raise or lower a preset increment at the touch of a button. This is especially helpful in dedicated applications where box dimensions remain constant from load to load.
