P4 Floor Height Pallet Load Leveler - Roll-On Leveler

• Available in 2,500 or 4,000 lb. capacities
• Platform Sizes: 44" x 48" or 52" x 48"
• Internally mounted power unit - 1 HP - 115/1/60
• Photoelectric toe guard
• Choose footswitch or hand pendant control
• Other voltages and platform sizes available
• Can be moved easily with pallet jack

Download General Catalog

Have a question or comment?

Please let us know your name.

Please let us know your email address.

Invalid Input

Invalid Input

Invalid Input

Question / Comment (*)Please let us know your message.

Enter Letters and Numbers(*)
RefreshInvalid Input

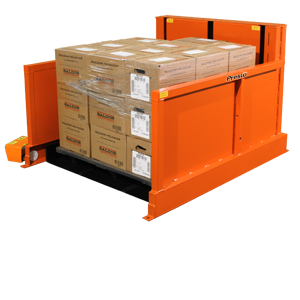

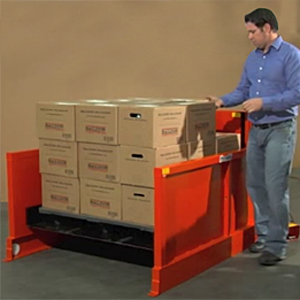

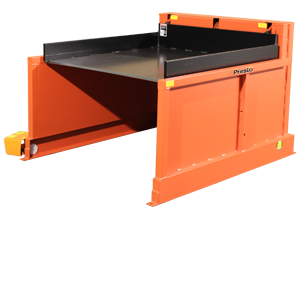

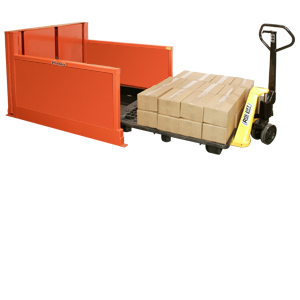

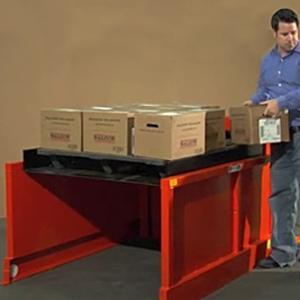

Fully Loaded P4 Floor Height Load Leveler A single layer of boxes at a comfortable height Platform lowered - top layer a comfortable height Pallet jacks roll easily on and off the 3/8" high platform P4 Unloaded with platform fully raised Ideal for manual pallet loading and unloading applications. Footswitch controls allow the operator to precisely position the load at the most convenient and comfortable for pallet loading or unloading. As a layer of boxes is removed from a pallet the operator can the adjust the platform height so the next layer moves into position for easy access. In pallet loading applications begin with an empty pallet on the platform raised to the full up position. As a each layer is added lower the platform and load the next layer. Because the P4 lowers to the floor it can be fed with a hand pallet truck making it perfect for facilities where fork lifts or stacker are unavailable.

• Model Number	Load Capacity	Raised Height	Lowered Height	Platform Size	Dimensions W x L	Lifting Speed	Std. Motor	Std. Voltage Phase/Hz	Shipping Weight
  P4 Series
  P4-25-4448	2500 lbs	28"	3/8"	44 x 48"	51 x 61"	22 sec	1 HP	115/1/60	1485 lbs
  P4-25-5248	2500 lbs	28"	3/8"	52 x 48"	59 x 61"	22 sec	1 HP	115/1/60	1620 lbs
  P4-40-4448	4000 lbs	28"	3/8"	44 x 48"	51 x 61"	30 sec	1 HP	115/1/60	1650 lbs
  P4-40-5248	4000 lbs	28"	3/8"	52 x 48"	59 x 61"	30 sec	1 HP	115/1/60	1800 lbs

  Options & Accessories

  • ONE TOUCH AUTO-LEVELING

  • ONE TOUCH AUTO-LEVELING

    Unit can be set to raise or lower a preset increment at the touch of a button. This is especially helpful in dedicated applications where box dimensions remain constant from load to load.
