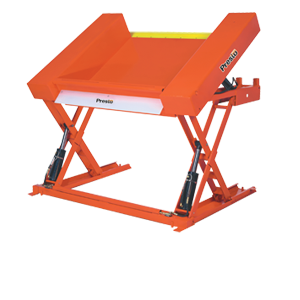

XZT Series Floor Level Lift & Tilt Tables

• Available in 2,000 or 4,000 lb. capacity
• 33" vertical travel - 30º tilt
• Yellow safety edge yields to protect worker during incidental contact
• Standard pedestal control
• Optional foot control available
• One power unit controls lift & tilt
• External 1 HP 115/1/60 power unit
• Optional power units / 3 phase power available
• Custom designs available

Download General Catalog

Have a question or comment?

Please let us know your name.

Please let us know your email address.

Invalid Input

Invalid Input

Invalid Input

Question / Comment (*)Please let us know your message.

Enter Letters and Numbers(*)
RefreshInvalid Input

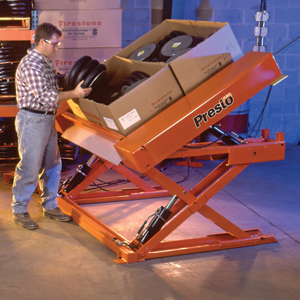

Pan-Style Platform Lowers to Floor Level Independently Control Height and Angle These hydraulic scissor lift tables in 2,000 or 4,000 lb. capacities lower flat to the floor allowing them to be loaded and unloaded with a hand pallet truck. They are ideal for facilities without fork lifts or stackers. They often increase worker productivity because workers can load and unload them without having to wait for a fork lift or stacker. The combination lift and tilt feature allows loads to be positioned at the most comfortable height and angle.

• Model Number	Load Capacity	Raised Height	Low Height	Degree of Tilt	Dimensions W x L		Platform Size	Lifting Speed	Shipping Weight
  XZT44 Series
  XZT44-20	2000 lbs	33 ⅜"	3/8"	30°	68 x 61"	44 x 48"		39 sec	1255 lbs
  XZT44-40	4000 lbs	33 ½"	1/2"	30°	68 x 61"	44 x 48"		43 sec	1420 lbs
  XZT50 Series
  XZT50-20	2000 lbs	33 ⅜"	3/8"	30°	74 x 61"	50 x 48"		40 sec	1420 lbs
  XZT50-40	4000 lbs	33 ½"	1/2"	30°	74 x 61"	50 x 48"		44 sec	1505 lbs
