P3 Operator Controlled Load Leveler

• Available in 2,000 or 4,000 lb. Capacity
• Foot Control
• Operates on Standard 115V Power
• Turntable Top for Nearside Loading and Unloading
• Built-in Fork Pockets for Easy Relocation

Download General Catalog

Have a question or comment?

Please let us know your name.

Please let us know your email address.

Invalid Input

Invalid Input

Invalid Input

Question / Comment (*)Please let us know your message.

Enter Letters and Numbers(*)
RefreshInvalid Input

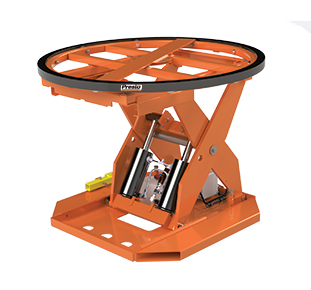

Built-in Turntable Top Operator Controlled Height Adjustment This fully powered hydraulic version of our P3 Load Leveler is the ideal choice when precise load positioning is required or when load weights, pallet sizes or product dimension vary greatly and frequently.

• Model Number	Load Capacity	Raised Height	Low Height	Base  L x W	Turntable Diameter	Standard Motor	Ship Weight
  Powered Pallet Positioner
  P3PH-24-20	2,000 lbs	33 3⁄16"	9 3⁄16"	40" x 36"	43 ⅝	1 HP	700 lbs
  P3PH-24-40	4,000 lbs	33 3⁄16"	9 3⁄16"	40" x 36"	43 ⅝	1 HP	760 lbs

  Options & Accessories

  • SOLID DISC COVER
  • BELLOW / ACCORDIAN SKIRTING
  • ACCESS STEP
  • SQUARE TURNTABLE PLATFORMS

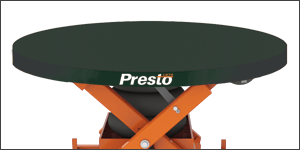

  • SOLID DISC COVER
    Solid steel disc cover in place of open turntable ring. Ideal for damaged pallets or small / odd sized pallets or skids.

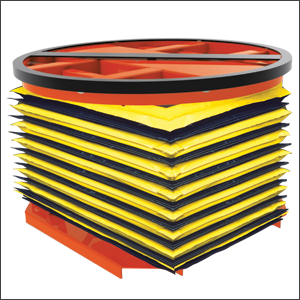

  • BELLOWS ACCORDIAN SKIRTING
    Black and yellow vinyl skirting wraps entire unit to keep underneath free from debris. Pleats expand and contract as unit raise and lowers.

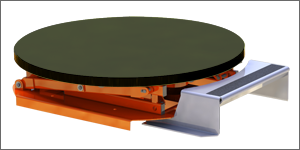

  • ACCESS STEP
    Handy step slips into fork channels to give shorter workers better access to the top of loads. Non-skid surface.
  • SQUARE TURNTABLE PLATFORMS
    Units can be equipped with a square turntable instead of the standard ring. Use with small or odd shaped skids or pallets.



SOLID DISC COVER
Solid steel disc cover in place of open turntable ring. Ideal for damaged pallets or small / odd sized pallets or skids.





BELLOWS ACCORDIAN SKIRTING
Black and yellow vinyl skirting wraps entire unit to keep underneath free from debris. Pleats expand and contract as unit raise and lowers.



ACCESS STEP
Handy step slips into fork channels to give shorter workers better access to the top of loads. Non-skid surface.



SQUARE TURNTABLE PLATFROMS
Units can be equipped with a square turntable instead of the standard ring. Use with small or odd shaped skids or pallets.
