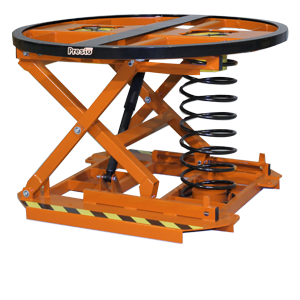

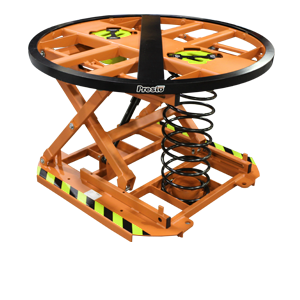

P3 All-Around Spring Load Leveler
- Tubular steel frame holds loads up to 4,500 lbs
- Heavy-duty springs automatically adjust pallet height
- Dampener provides smooth, gradual raising and lowering, without overshoot or bounce
- Integrated turntable ring
- Phenolic frame cover (optional)
- Fork pockets for relocation by fork truck
- No lagging necessary
- Leveling feet (optional) allow use on sloping or uneven floors
Have a question or comment?

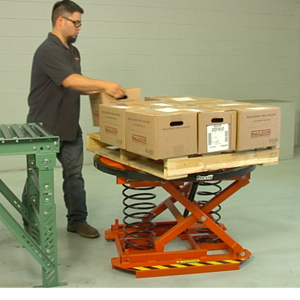

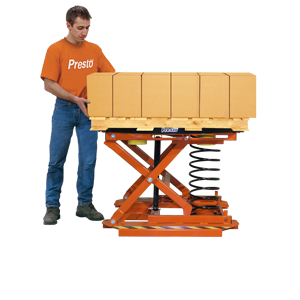

P3 Spring Load Levelers improve the efficiency and productivity of manual pallet loading and unloading operations. A system of springs and shock absorbers lower or raise loads as boxes are added or removed from pallets.
The built-in turntable ring allows workers to spin the load so that work is always being done on the nearside
P3 Spring Load Leveler are completely automatic and require no power or air supply to operate.
Pallet loads up to 4,500 lbs can be handled.
W x L
Pallet Positioner P3 Spring 4500 lbs 28" 9 ½" 36 x 36" 43 ⅝" 460 lbs
OPTIONS & ACCESSORIES
Sits above the palletizer, but under the turntable ring. Keeps debris from collecting under the unit

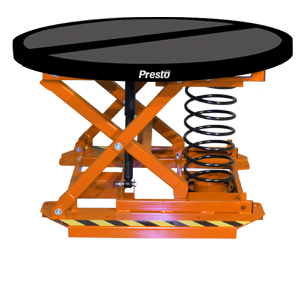

SOLID DISC COVER
Solid steel disc cover in place of open turntable ring. Ideal for damaged pallets or small / odd sized pallets or skids.

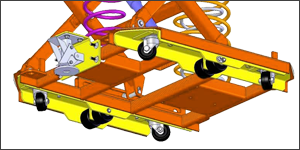

FORK POCKET CASTER KIT
Mounts under unit in fork pockets to allow palletizer to be portable. A foot operated floor lock keeps the unit from rolling when in use.

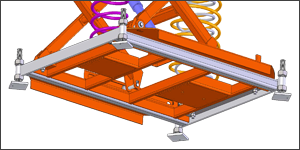

For use on uneven or damaged floors. 4 adjustable screw feet can be independently adjusted to ensure the palletizer is perfectly level.
BELLOWS ACCORDIAN SKIRTING
Black and yellow vinyl skirting wraps entire unit to keep underneath free from debris. Pleats expand and contract as unit raise and lowers.
Handy step slips into fork channels to give shorter workers better access to the top of loads. Non-skid surface.

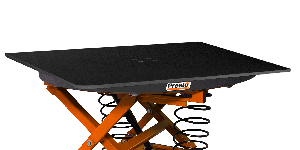

SQUARE TURNTABLE PLATFORMS
Units can be equipped with a square turntable instead of the standard ring. Use with small or odd shaped skids or pallets.
SPECIAL FINISHES / MATERIALS
Presto P3 Palletizers are available with a variety of custom finishes including special paint colors, chemical resistant coatings, two-part epoxies, hot-dipped galvanizing. Stainless steel construction is also available.
